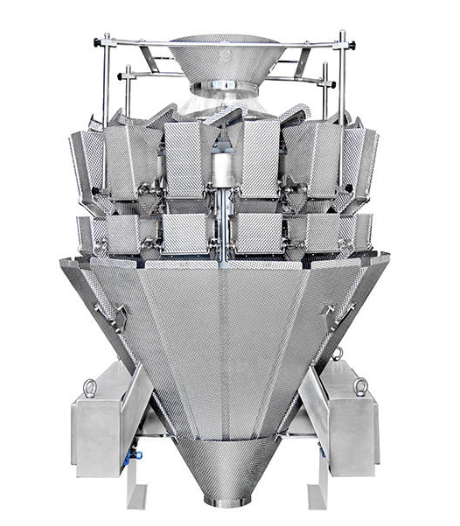

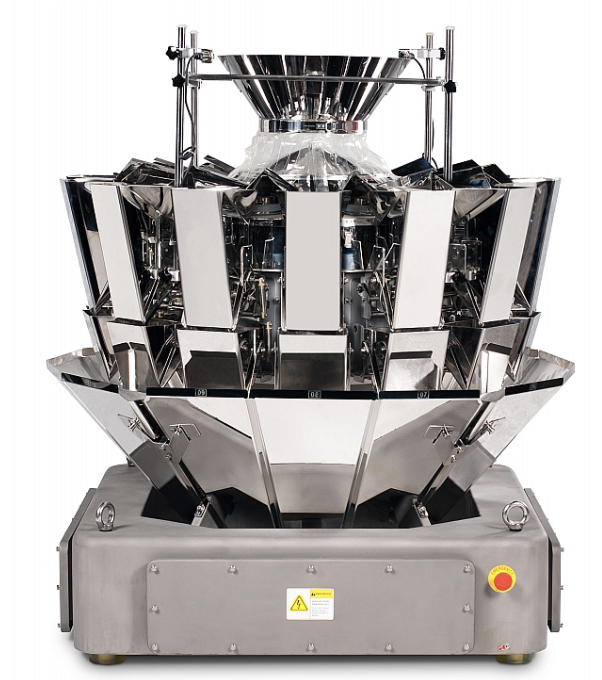

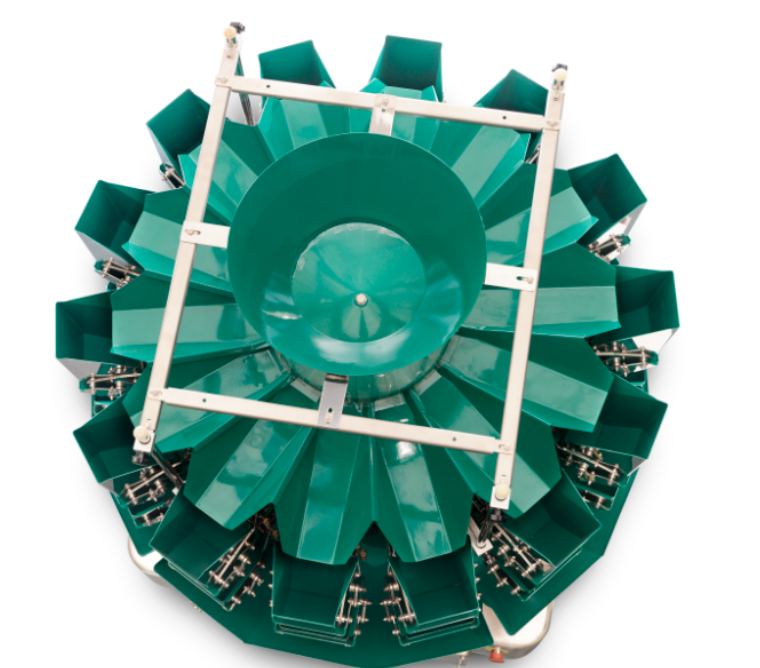

MULTI-PAN SCALE CW10/CW14/CW20
Filling Units
Still deciding? Get samples Still deciding? Get samples
Athapack
Find Similar Products
Detail
- All surfaces in contact with the product are AISI 304 stainless steel.
- Easy use and adjustment via 10” Touch Color screen.
- The number of pans and the pan structure vary depending on production requirements .
- Up to 100 prescriptions can be saved .
- All parts that come into contact with the product can be easily disassembled and cleaned without requiring any tools.
- Independent stepper motors are used to open and close each shroud.
- The vibration of the flow channels providing horizontal feeding can be adjusted independently from each other from the control panel.
- Minimum and maximum tolerances for weighing can be easily set from the screen.
- Zero calibration is performed both before and during operation as set .
- In order to prevent the product from getting stuck on the collar-pipe, a delay time can be adjusted between the emptying times of the scales forming the calibration.
- The scale automatically adjusts the vibration speed of the horizontal feed channels by making its own decisions according to the settings made.
- High weight weighings are achieved thanks to the multiple discharge function.
- The panel is protected by encryption to prevent unauthorized data entry.
- It has automatic discharge and cleaning function.
- Switching from one product to another is quick and easy.
Technical Details
| MW Series Technical Data | |||||||
| MODEL | CW-10M | CW-14M | CW-10 | CW-14 | CW-20 | CW-10L | CW-14L |
| Number of Heads | 10 | 14 | 10 | 14 | 20 | 10 | 14 |
| Small range (gr) | 250 gr | 250 gr | 1000 gr | 1000 gr | 1000 gr | 2500 gr | 2500 gr |
| Sensibility | 0.1 gr | 0.1 GR | 0.1 gr | 0.1 GR | 0.1 gr | 0.1 GR | 0.1 gr |
| Capacity | 75 / min | 100 / min | 65 / min | 90 / min | 135 / min | 55 / min | 75 / min |
| Bucket size | 0.5 liters | 0.5 liters | 1.6 liters | 1.6-2.5 liters | 1.6 liters | 5 liters | 5 liters |
| Power requirement | 220V 50Hz 0.8KW |
220V 50Hz 1.2KW |
220V 50Hz 1.5KW |
220V 50Hz 2KW |
220V 50Hz 3KW |
220V 50Hz 1.8KW |
220V 50Hz 2.5KW |
|
Air consumption
5 ATM
|
- | - | - | - | - | 0.168 lt / cycle | 0.168 lt / cycle |
| Dimensions | A= 961 B= 800 C= 800 |
A= 1190 B= 970 C= 970 |
A= 1310 B= 1135 C= 1150 |
A= 1400 B= 1180 C= 1220 |
A= 1629 B= 1665 C= 1665 |
A= 1828 B= 1733 C= 1565 |
A= 1565 B= 1932 C= 1932 |
